Product introduction:
Suitable material:
It is applicable for packing medicine, foodstuff, chemical industry, candy in triangle bag. Such as tea leaves, vegetable seed, flavouring, chocolate beans, drinking etc.
It is applicable for packing medicine, foodstuff, chemical industry, candy in triangle bag. Such as tea leaves, vegetable seed, flavouring, chocolate beans, drinking etc.
Product features:
1.The packing bags for the finished products are of triangle.
2. Machine model: granule machine, liquid machine, powder machine.
3. The packing running data and adjustment are directly displayed on the screen. The user can directly operate it on it.
4. Equipped with a photoelectric controller to ensure that its packing bag patterns are perfect.
5. It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
6. The body and the parts touching the material are made of stainless steel.
7. Packing material: PET/PE, PET/aluminizing/PE, PET/Al foil/PE, paper/PE, nylon and other heat-sealing compound material.
8. packing material required: 0.04mm«film thickness«0.08mm,inner diameter of film roll need 75mm at least, outer diameter of film roll need 320mm.
2. Machine model: granule machine, liquid machine, powder machine.
3. The packing running data and adjustment are directly displayed on the screen. The user can directly operate it on it.
4. Equipped with a photoelectric controller to ensure that its packing bag patterns are perfect.
5. It can automatically finish making-bag, metering, filling, sealing, cutting, counting and printing batch number.
6. The body and the parts touching the material are made of stainless steel.
7. Packing material: PET/PE, PET/aluminizing/PE, PET/Al foil/PE, paper/PE, nylon and other heat-sealing compound material.
8. packing material required: 0.04mm«film thickness«0.08mm,inner diameter of film roll need 75mm at least, outer diameter of film roll need 320mm.
Technical parameters:
MODEL |
SJIII-LB150 (K, F, S) |
Bag length (mm) |
50-150 |
Bag width (mm) |
40-100 |
Packing film width (mm) |
100-220 |
Capacity (bag/min) |
30-60 |
Volume (g) |
5-100 |
Power |
1.6kw |
Air power (Mpa) |
0.65 |
Air consumption |
100L/min |
Size (L*W*H) (mm) |
900*1100*1800 |
Weight(kg) |
320 |

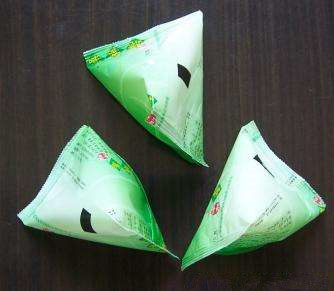

Sample display:
