XGF8-8-3 Automatic Bottle Washing, Filling and Capping Three in One Production Line
XGF8-8-3 Automatic Bottle Washing, Filling and Capping Three in One Production Line
Product introduction:
It is applied for filling the materials containing no mineral water,purified water,fruit juice and beverage and drinks.
Product features:
1.It can be applicable for kinds of bottles of different diameters without changing parts.
2.The trinity production line links guarantees its continuity and reliability in production.
3.Shortened production flow,improving the work efficiency,so it is convenient for the user to operate it.
4.The whole machine can produce in a closed environment,featuring in safety production hygiene.
5.The body and the parts touching the material are made of stainless steel.
Technical parameters:
Model XGF8-8-3 XGF12-12-5 XGF18-18-6 XGF24-24-8
Production Capacity 500ml(bottles/hour 3000 4500 8000 10000
Suitable height(mm) 150-340 150-340 150-340 150-340
Suitable diameter(mm)
∅50-∅110
∅50-∅110
∅50-∅110
∅50-∅110
Spraying pressure(Mpa)
0.2-0.3
0.2-0.3
Power supply(KW) 2.2 3.2 3.8 4.2
Filling Temperature Room  Temperature Room  Temperature Room  Temperature Room  Temperature
Overall Size L×W×H(mm) 2100×1500×2300 2400×1800×2300 2500×1800×2300 2800×2000×2400
Total weight(Kg) 2000 2500 3000 4000


Model XGF32-32-10 XGF40-40-10 XGF550-50-10
Production Capacity 500ml(bottles/hour 15000 18000 20000
Suitable height(mm) 150-340 150-340 150-340
Suitable diameter(mm)
∅50-∅110
∅50-∅110
∅50-∅110
Spraying pressure(Mpa)
0.2-0.3
0.2-0.3
0.2-0.3
Power supply(KW) 5.6 6.3 7.5
Filling Temperature Room  Temperature Room  Temperature Room  Temperature
Overall Size L×W×H(mm) 3700×2600×2600 4000×3000×2600 4500×3400×2600
Total weight(Kg) 5000 6000 7200

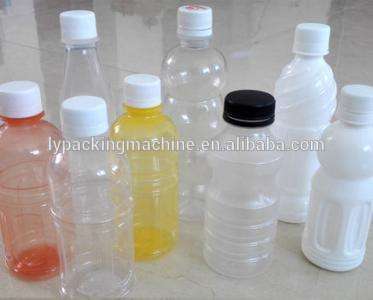

Sample display:
